Product Feature for P3 advertising led wall:

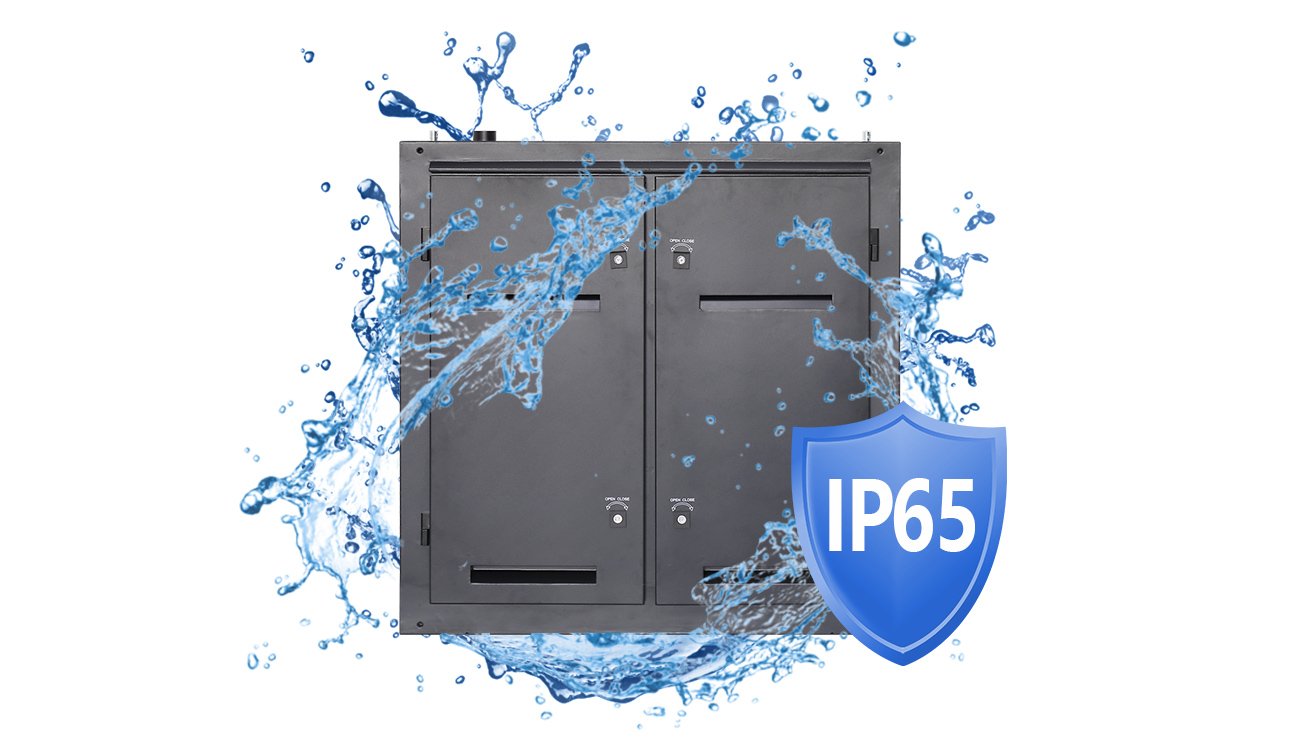

1. Waterproof cabinet design, high protection grade IP65.
2. Shkëlqim i lartë, easy installation.
3. High quality, reliable quality grarantee.
4. Energy saving, konsumi i ulët i energjisë.
5. Two kinds of cabinet materials, steel and die cast megnesium.
6. Available models: P3.076, P3.3, P4 P5, P6.66, P8 and P10.

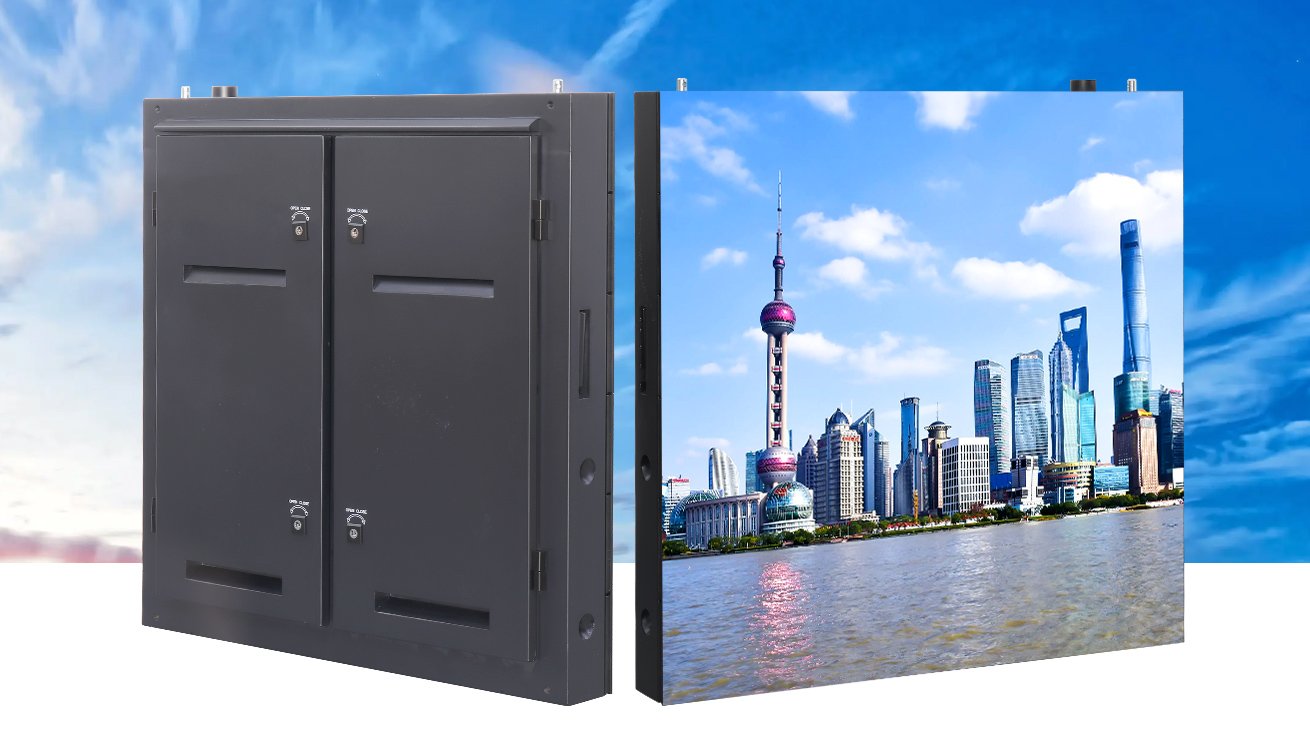

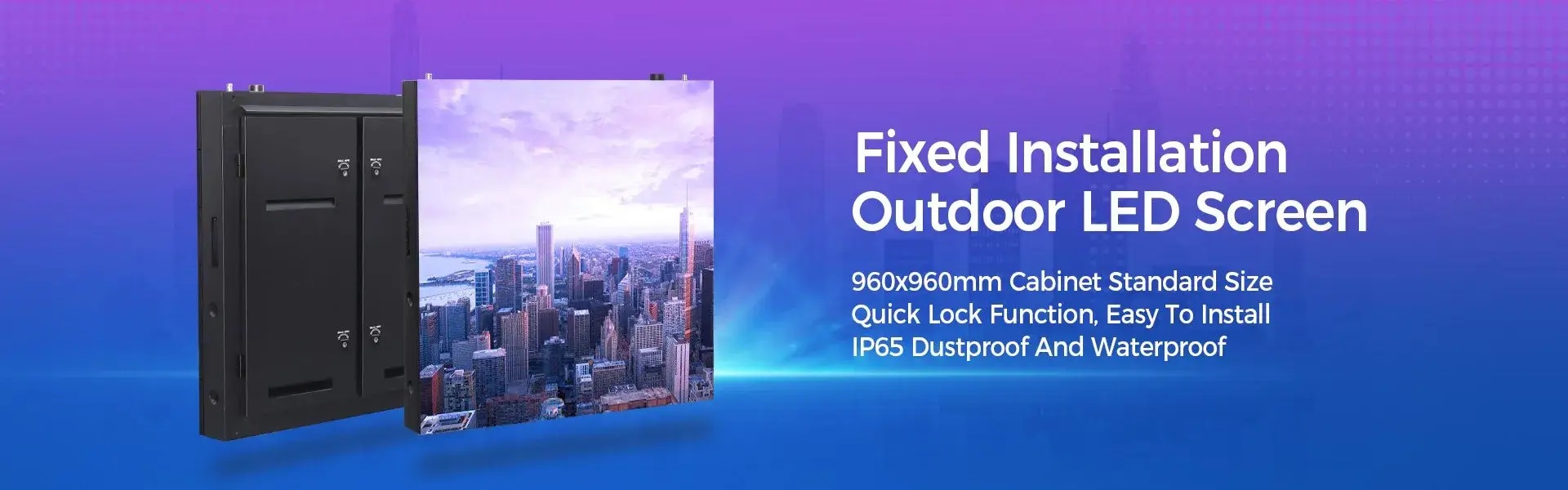

Outdoor LED Display Fixed Installation LED Screen Fixed Series.
The SMD Encapsulation technology with high brightness makes the Outdoor Fixed LED display has a Vivid and smoother pictures when in use.
The SMD Encapsulation technology with high brightness makes the Outdoor Fixed LED display has a Vivid and smoother pictures when in use.

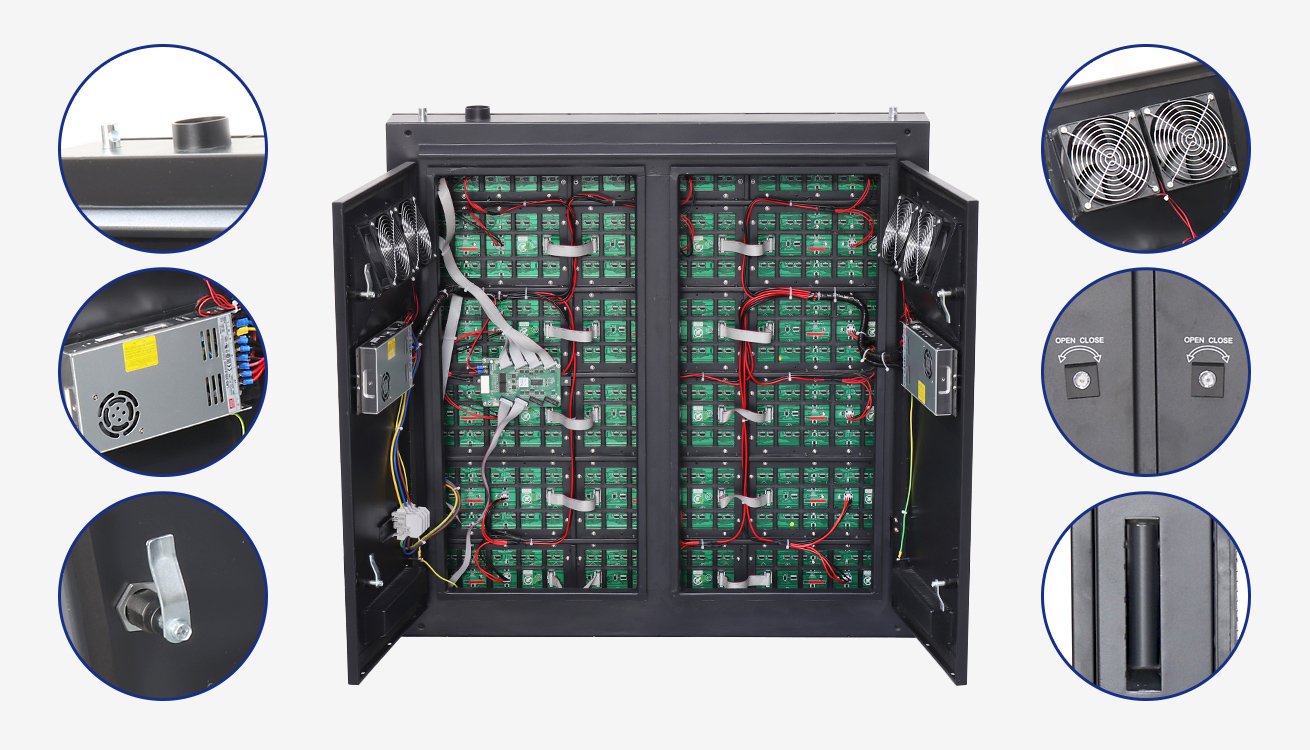

Waterproof Cabinet Structure advantages.
Outdoor fixed installation LED Billboard cabinets are heat-treated with iron materials to improve heat resistance.
The cabinet has high hardness and excellent wind and cold resistance.
Best Color Uniformity and High Brightness
We choose the best MBI5124 ICN2153 driver IC for outdoor NationStar Gold Wire LEDs, with high reliability and contrast ratio,
to meet the needs of high brightness 5000nit-9000nits, high refresh rate 3840Hz-7680Hz, high grayscale, and the best color uniformity.

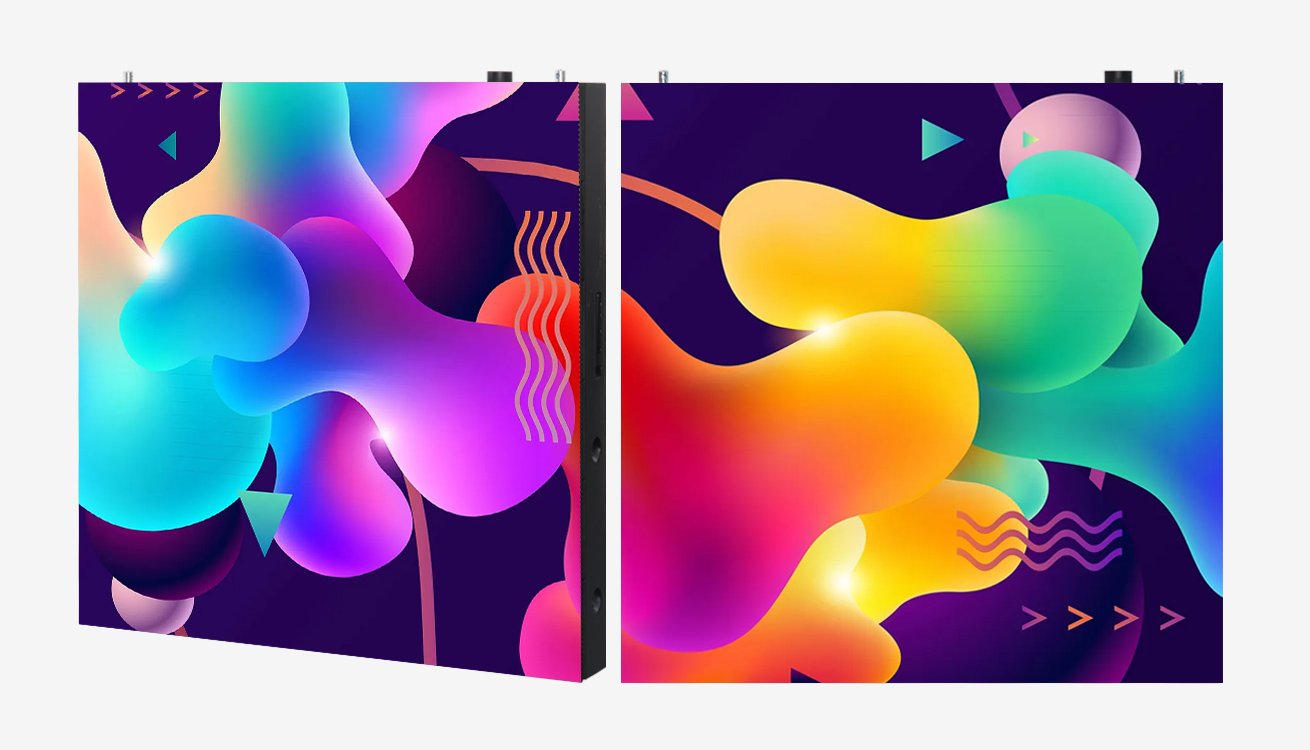

How to install an outdoor LED display? Seamless Display, Better Visual Effects
High precision LED display make seamless splicing image and video display, offering you the perfect visual experience you desire.
The picture quality confronts viewers with an entirely new sensory experience.
| Nr. | OF 3.0 | OF 3.3 | OF 4.0 | OF 5.0 | OF 6.0 | OF 6.66 | OF 8.0 | OF 10 | |
| Module | Pixel Pitch(mm) | 3 | 3.3 | 4 | 5 | 6 | 6.66 | 8 | 10 |
| Madhësia e modulit(mm) | 192*192 | 320*160 | 256*128 | 320*160 | 192*192 | 320*160 | 320*160 | 320*160 | |
| Rezolucioni i modulit(pixel) | 64*64 | 96*48 | 64*32 | 64*32 | 32*32 | 48*24 | 40*20 | 32*16 | |
| Lloji LED | SMD1415 | SMD1921 | SMD1921 | SMD2525 | SMD3535 | SMD3535 | SMD3535 | SMD3535 | |
| Cabinet | Madhësia e kabinetit(mm) | 960×960 | 960×960 | 1024×1024 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 |
| Rezoluta e kabinetit(pixel) | 320×320 | 288×288 | 256×256 | 192×192 | 160×160 | 144×144 | 120×120 | 96×96 | |
| Material | Steel | Steel/Die cast Megnesium | Steel | Steel/Die cast Megnesium | Steel | Steel/Die cast Megnesium | Steel/Die cast Megnesium | Steel/Die cast Megnesium | |
| Pesha e kabinetit(kg) | 52 | 52/30 | 58 | 52/30 | 52 | 52/30 | 52/30 | 52/30 | |
| Display | Dendësia e pikselit(pixel/sqm ) | 111111 | 90000 | 62500 | 40000 | 27777 | 20736 | 15625 | 10000 |
| Shkëlqimi(cd/m2) | 5500 | 5500 | 6500 | 5500 | 6500 | 5500 | 5500 | 6500 | |
| Shpejtësia e rifreskimit(Hz) | 1920-3840 | ||||||||
| Gray Level | 14-16pak | ||||||||
| Mesatar. Konsumi i energjisë (W/sqm) | 400 | 400 | 300 | 350 | 220 | 260 | 300 | 265 | |
| Maks. Konsumi i energjisë (W/sqm) | 900 | 900 | 1000 | 750 | 560 | 790 | 800 | 750 | |
| Kendveshtrim | H:160°V:140° | ||||||||
| IP Grade | IP65 | ||||||||
| Service Access | Mbrapa | ||||||||
| Operating Temp/Humidity | -20ºC~50ºC, 10~90%RH | ||||||||
| Storage Temp/Humidity | -40ºC~60ºC, 10~90%RH | ||||||||
