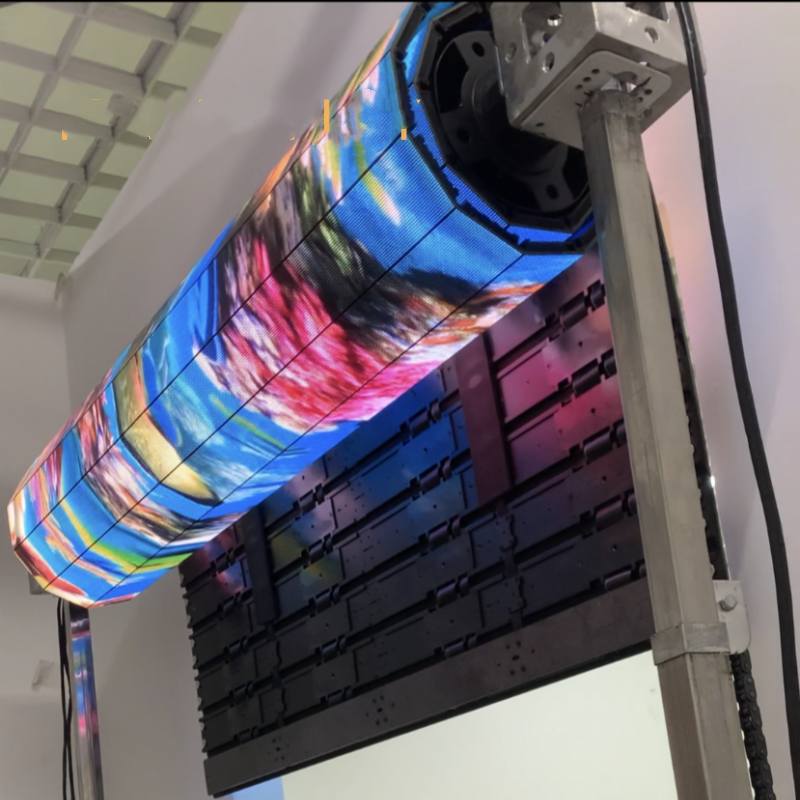

Digital LED Rolling Displays are a new generation of innovative Digital LED Displays. In addition to the traditional features and benefits of Digital LED Displays, the Digital LED Rolling Displays are ultra-thin (only 13-15mm thick), lightweight (significantly reducing freight costs), portable (only 15kgs/sq.m.), and have a loading capacity of more than 2.5 tonnes. The GOB technology provides anti-collision and waterproof features, and the simple structure allows for easy installation and quick maintenance.
packing & delivery

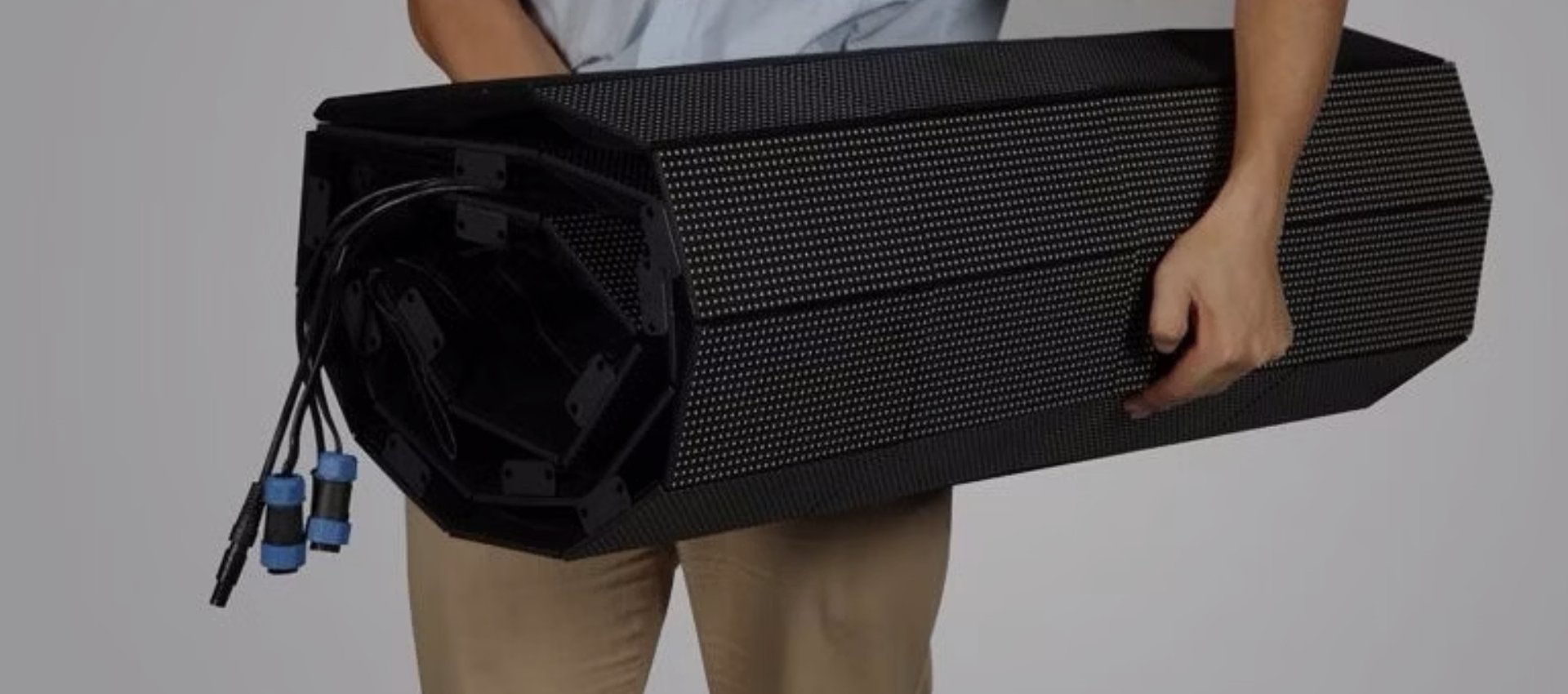

The Digital LED Rolling Displays are lightweight and can be rolled into flight cases for a more compact delivery, significantly reducing both the actual weight and the volume weight, compared to traditional Digital LED Displays.
The Digital LED Rolling Displays screens are available with numerous pixel pitch options from only 0.7mm upwards depending upon the viewing distance and we will advise on the most appropriate pitch for your application. We will also design, produce and install any supporting structures or motorised systems that may be needed to safely mount or install the LED screens according to the application.
Features:
-
Pixel pitch options: 0.9, 1.2, 1.5, 1.9, 2.6 and 3.9mm
-
Ultra- slim 15-20mm installation depth
-
Lightweight and portable (15kgs/sq.m.)
-
Glue on Board (GOB) for anti-collision, and waterproof (IP63)
-
Relevant media player is supplied to control content
-
Content Management System (CMS) to update content remotely
-
Ability to produce any size or configuration
-
Experienced design and installation team
Packing & delivery
The Digital LED Rolling Displays are lightweight and can be rolled into flight cases for a more compact delivery, significantly reducing both the actual weight and the volume weight, compared to traditional Digital LED Displays.
| LED | NationStar SMD1010 | NationStar SMD1010 | NationStar SMD1010 | NationStar SMD1515 | NationStar SMD2121 |
| Pixel Pitch | 1.25mm | 1.5625mm | 1.953mm | 2.604mm | 3.91mm |
| LED Module Size (mm) | W500 x H62.5 x D14mm | ||||
| LED Module resolution (pixels) | 400 x 50 pixels | 320 x 40 pixels | 256 x 32 pixels | 192 x 24 pixels | 128 x 16 pixels |
| Signal processing capabilities | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
| Grayscale grade | 4096-65536 | 4096-65536 | 4096-65536 | 4096-65536 | 4096-65536 |
| Refresh Rate（Hz） | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz |
| Scanning Method | 1/50 | 1/40 | 1/32 | 1/24 | 1/16 |
| Brightness | >800cd/m2 | >800cd/m2 | >800cd/m2 | >900cd/m2 | >1000cd/m2 |
| Best viewing distance (meter) | ≥ 1.2m | ≥ 1.5m | ≥ 1.9m | ≥ 2.6m | ≥ 3.9m |
| Weight | 16kg/㎡ | 16kg/㎡ | 16kg/㎡ | 16kg/㎡ | 16kg/㎡ |
| Viewing angle（°） | 140° | 140° | 140° | 140° | 140° |
| Input voltage（V） | DC 24V | DC 24V | DC 24V | DC 24V | DC 24V |
| Maximum power consumption | 512w/sqm | 512w/sqm | 512w/sqm | 512w/sqm | 512w/sqm |
| Average power consumption | 170w/sqm | 170w/sqm | 170w/sqm | 170w/sqm | 170w/sqm |
| Temperature | -20 ℃/+50℃ (working) | -20 ℃/+50℃ (working) | -20 ℃/+50℃ (working) | -20 ℃/+50℃ (working) | -20 ℃/+50℃ (working) |
| ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) | |
| Protection level | IP 65 / IP 41 | IP 65 / IP 41 | IP 65 / IP 41 | IP 65 / IP 41 | IP 65 / IP 41 |
| Humidity | 10%~90% (working) | 10%~90% (working) | 10%~90% (working) | 10%~90% (working) | 10%~90% (working) |
| 10%~90% (storage) | 10%~90% (storage) | 10%~90% (storage) | 10%~90% (storage) | 10%~90% (storage) | |
| Lifetime（hours） | 100000 | 100000 | 100000 | ≥100,000 | ≥100,000 |
| Maintenance method | Rear | Rear | Rear | Rear | Rear |
| NovaStar Control System | A5S PLUS | A5S PLUS | A5S PLUS | A5S PLUS | A5S PLUS |
